At W.P. Hilts, concrete plants are done right.
That means mixers, batchers and everything else will run right — at top speed.
Work with a company that gets it. Trust us. We’ve been there. We’ll make your plant run at top speed.
The industry is ever-changing in technology, which means old plant managers are calling us for upgrades.

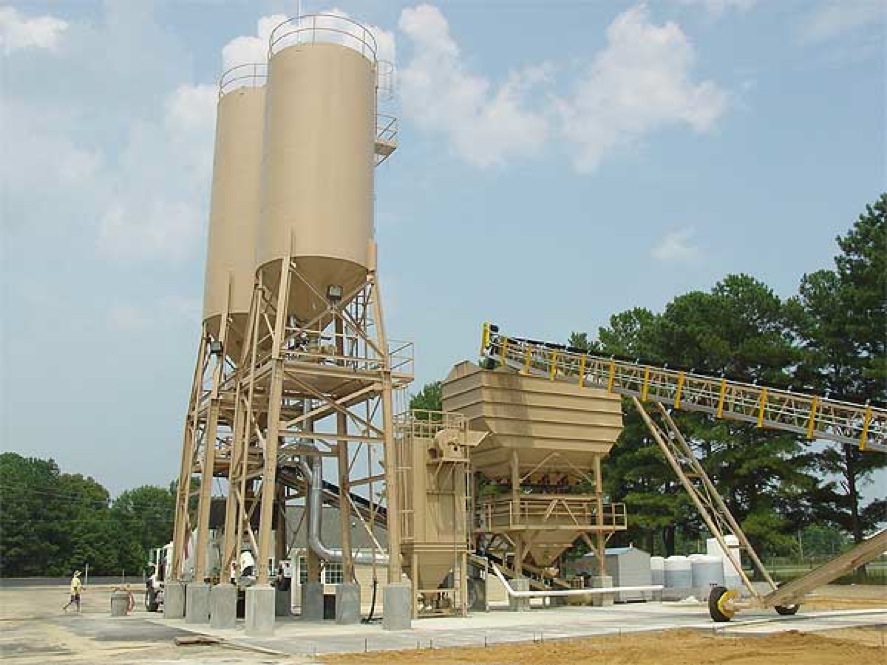

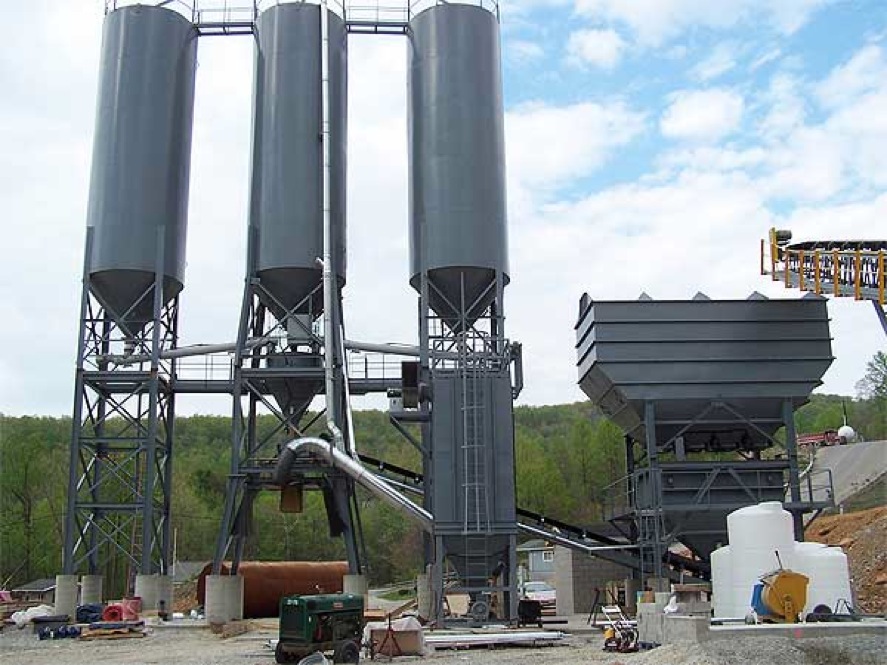

You’ll see our W.P. Hilts & Co. ready-mix plants working all over America; some dating back to the 1980s: adaptive designs according to the customer’s wishes at standard prices.
Call W.P. Hilts for your next ready-mix plant upgrade
You’ve invested in your plant and its equipment, but additions and upgrades are always ongoing, so let us work on your next project. Here are some ready-mix batch concrete plant components we offer:
CEMENT SILOS
- Single or split compartment silos
- 270-1,050 bbl silo capacity (1,080-4,200 feet)
- Airpads with manifold
- Silo-top dust collector
- Platform with handrail
- Pressure relief valve
- Bin indicators: Hi-Top mount; Low-Side mount
- Emergency slide gate
CEMENT WEIGH HOPPER
- 120 cubic-foot capacity — 60 degree slope
- Aeration pads with manifold
- 2″ piston vibrator, standard
- 10″ butterfly valve with actuator and limit switch
- Load cells system as a standard
- Digital indicator with 10 volt analog output (if needed)
- Gum rubber boot
AGGREGATE BINS
- 65-400 ton aggregate bins with heap plates
- 2, 3, 4, 5 or 6 compartments
- Double acting clamshell gates with grease fittings
AGGREGATE WEIGH HOPPER
- 12-yard capacity — 535 cubic feet
- 3″ piston vibrator
- Load cells standard
- Digital indicator with 10-volt analog output (if needed)
- Double acting clamshell gate with grease fittings
CONVEYOR
- 24″ or 30″ standard widths
- Emergency pull cords
- Dodge speed reducer and components (or equivalent)
- Lagged head pulley
- Wing type tail pulley
- 3/16 x 1/16 220# belting, standard
- Belt scraper
- Collecting hopper with gum rubber boot
MATERIAL HANDLING and MORE
- 12′ x 12′ front-end loader hopper; other sizes available
- Electric vibrator with controls
- Radial stacker (24″or 30″ belt width or stationary conveyor with turnhead)
- Remote control
- Propel motor with brake
- Walkway
- Emergency pull cord
- 2, 3, 4 water meters and weigh hoppers
- Options, like AR steel on bins, hoppers and gates
- Central dust collection systems
- Installation of plants available
